Single-gas detector
Type: DX-BH-90
Introduction
DX-BH-90 portable single gas detector can make continuous detection to combustible and toxic gases. The detector, adopting excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts embedded MCU controller, easy to operate.The shell adopts special high strength material and anti-smooth rubber, with the characters of water-proof and dust-proof.
DX-BH-90 is a high price portable single gas detector. It adopts the mainstream 8 bit micro control technology. It has quick response speed, high precision, good stability and repeatability and simple operation. It is compact and highly waterproof, and it can withstand the test of harsh environment. Bring your flashlight to facilitate temporary operation in dark environment. Built in 1500mA large capacity rechargeable lithium battery, super long standby; using 12864 dot matrix LCD screen can perfect display of various technical indicators and gas concentration value, can view historical alarm data, and have data storage function. It is suitable for explosion-proof, toxic gas leakage, leakage, underground pipeline, mine, metallurgy, power plant, chemical, tunnel, tunnel and other places, effectively preventing the occurrence of poisoning accidents, ensuring the safety of the workers' lives and preventing the damage of the equipment.
Technical parameter
|
Product type |
DX-BH-90 |
|
Sampling method |
Diffusion type (Sampling pump optional) |
|
Display |
Large LCD |
|

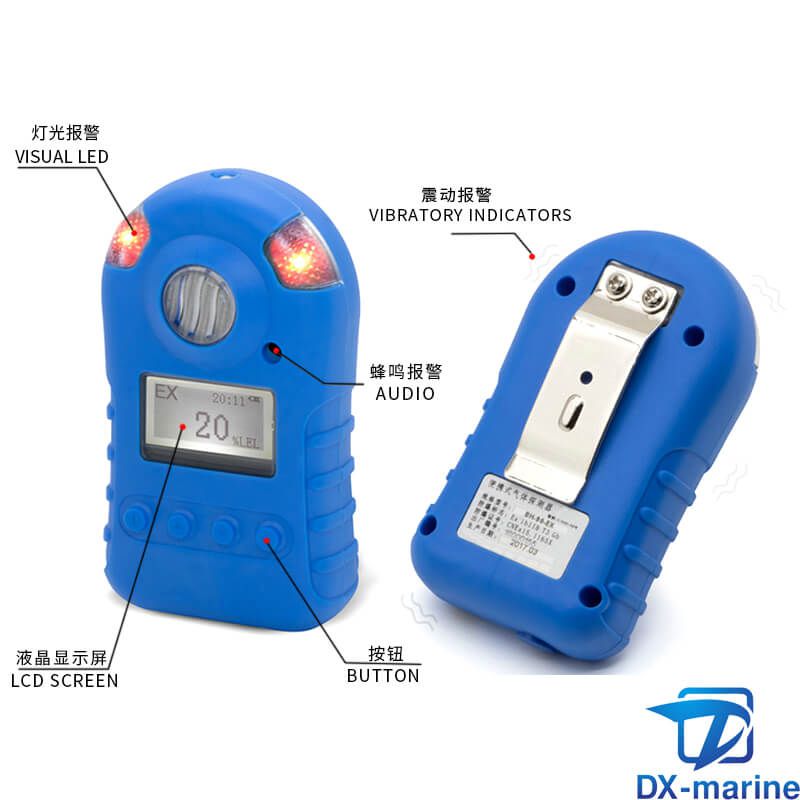

Alarm method |
Audio, Visual LED and Vibratory |
|
Alarm features |
Alarm light: Red LED flashes alarm, ≥20m Alarm sound: Buzzer alarm ≥75dB Vibration alarm |
|
Working environment |
-20℃～50℃ |
|
Power Supply |
3.7V Rechargeable lithium battery |
|
Gas Sensor Life |
2 years |
|
Charging time |
Less than 5 hours |
|
Data record |
1000pcs data storage |
|
Working time |
8h continuously |
|
Password protection |
Password protection and password modification |
|
Recovery operation |
Support restore factory calibration function, restore factory parameter setting function. |
|
Explosion-proof grade |
Exib IIB T3 Gb |
|
Principle |
Electrochemical and Catalytic sensor.Other gases needed, please contact supplier |
|
Additional function |
Flashlight |
|
Humidity |
0-95%RH （no dew） |
|
Shell material |
ABS |
|

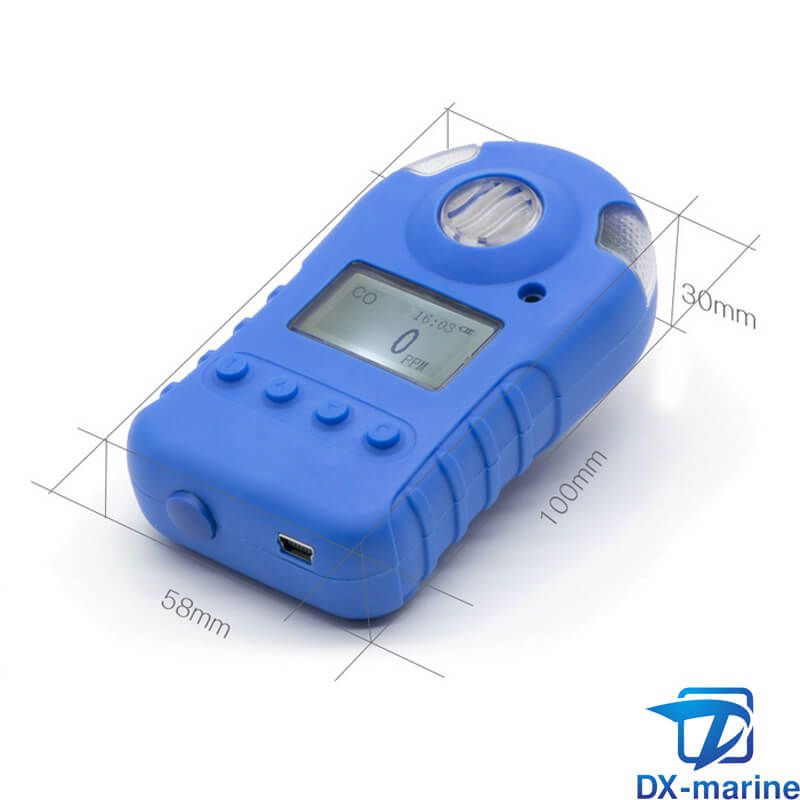

Dimensions |
134x61x32mm（L×W×H） |

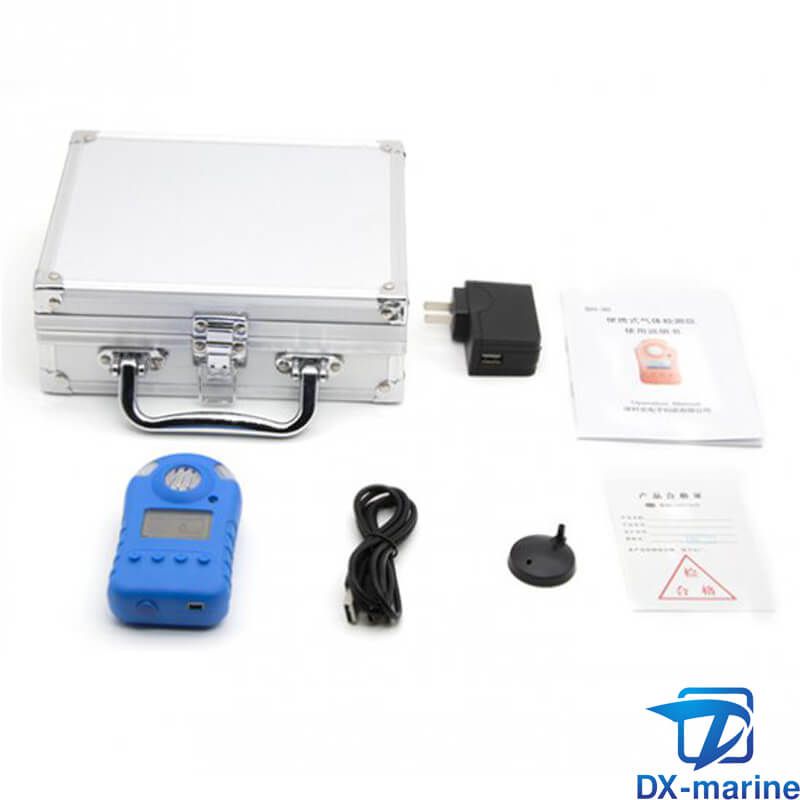

Detail pictures

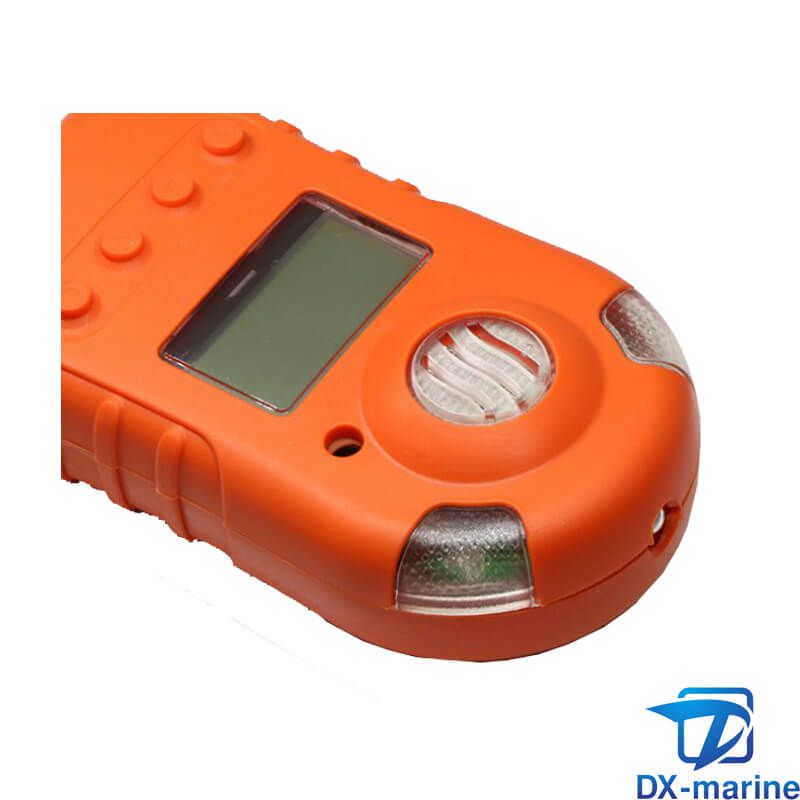

Orange

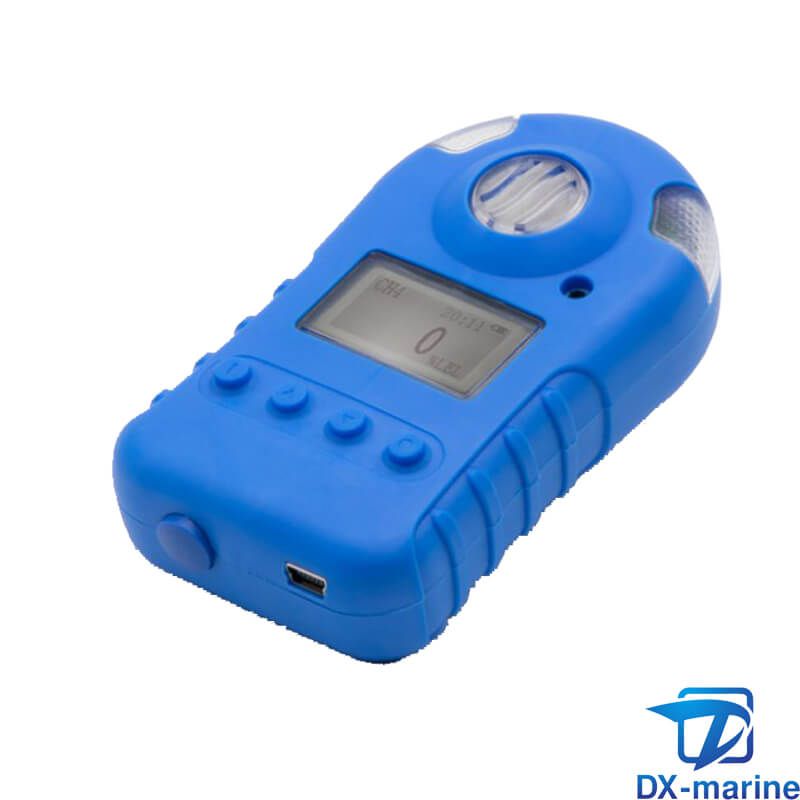

Blue
Yellow
Gas parameters
|
Detecting gas |
Measuring range |
Optional range |
Resolving power |
Alarm point |
|
EX |
0-100%lel |
0-100%vol (Infrared) |
1%lel/ 1%vol |
Low: 20 High: 50 ppm |
|
O2 |
0-30%vol |
0-30%vol |
0.1%vol |
Low: 19.5% High: 23.5% vol |
|
H2S |
0-100ppm |
0-50/ 200/ 1000ppm |
1ppm |
Low: 10 High: 20 ppm |
|
CO |
0-1000ppm |
0-1000ppm |
1ppm |
Low: 50 High: 150 ppm |
|
CO2 |
0-5000ppm |
0-1%/ 5%/ 10%vol (Infrared) |
1ppm/ 0.1%vol |
Low: 1000 High: 2000 ppm |
|
NO |
0-250ppm |
0-500/ 1000ppm |
1ppm |
Low: 50 High: 150 ppm |
|
NO2 |
0-20ppm |
0-50/ 1000ppm |
0.1ppm |
Low: 5 High: 10 ppm |
|
SO2 |
0-20ppm |
0-50/ 1000ppm |
0.1/ 1ppm |
Low: 5 High: 10 ppm |
|
CL2 |
0-20ppm |
0-100/ 1000ppm |
0.1ppm |
Low: 5 High: 10 ppm |
|
H2 |
0-1000ppm |
0-500/ 2000/ 5000ppm |
1ppm |
Low: 50 High: 150 ppm |
|
NH3 |
0-100ppm |
0-50/ 500/ 1000ppm |
0.1/ 1ppm |
Low: 20 High: 50 ppm |
|
PH3 |
0-20ppm |
0-20/ 1000ppm |
0.1ppm |
Low: 5 High: 10 ppm |
|
HCL |
0-20ppm |
0-20/ 500/ 1000ppm |
0.1ppm |
Low: 5 High: 10 ppm |
|
CLO2 |
0-50ppm |
0-10/ 100ppm |
0.1ppm |
Low: 5 High: 10 ppm |
|
HCN |
0-50ppm |
0-100ppm |
0.1/ 0.01ppm |
Low: 10 High: 20 ppm |
|
C2H4O |
0-100ppm |
0-100ppm |
1/ 0.1ppm |
Low: 20 High: 50 ppm |
|
O3 |
0-10ppm |
0-20/ 100ppm |
0.1ppm |
Low: 2 High: 5 ppm |
|
CH2O |
0-20ppm |
0-50/ 100ppm |
1/ 0.1ppm |
Low: 5 High: 10 ppm |
|
HF |
0-100ppm |
0-1/ 10/ 50/ 100ppm |
0.01/ 0.1ppm |
Low: 2 High: 5 ppm |
|
C7H8 |
0-20ppm |
0-1/ 10/ 50/ 100ppm |
0.01/ 0.1ppm |
Low: 5 High: 10 ppm |
Suitable for ships and offshore
