Introduction
Man hydraulic top bracing stand-alone type of M/E （Hydraulic top bracing） are installed between the engine and the hull, to detune the natural frequencies of the engine and thus lower the impact of the vibrations.

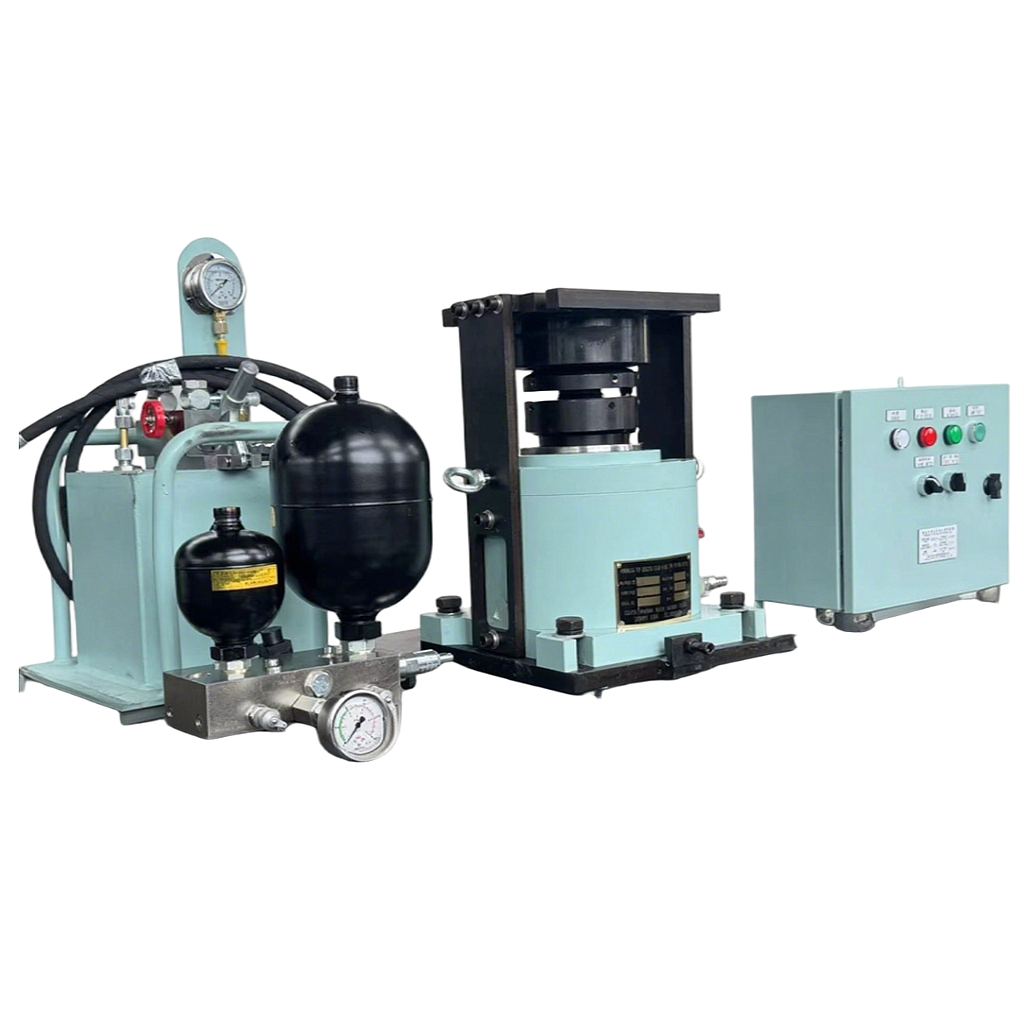

The standard installation features two air-hydraulic top bracing units. Each consisting of: an oil accumulator, a hydraulic control unit, a cylinder unit, a set of mountingflanges.
Technical parameter
Cylinder diameter：200mm
Build-in length：475mm
Weight：~132kg
Nominal force (7bar)：22kN（11bar）
Max. force (26bar)：82 kN（26bar）
Max. force (40bar)：127 kN（40bar）
Oil type：VG32 or VG46
Lubricating grease： Molykote (MoS2)
Power：24V DC
Approved: CCS
