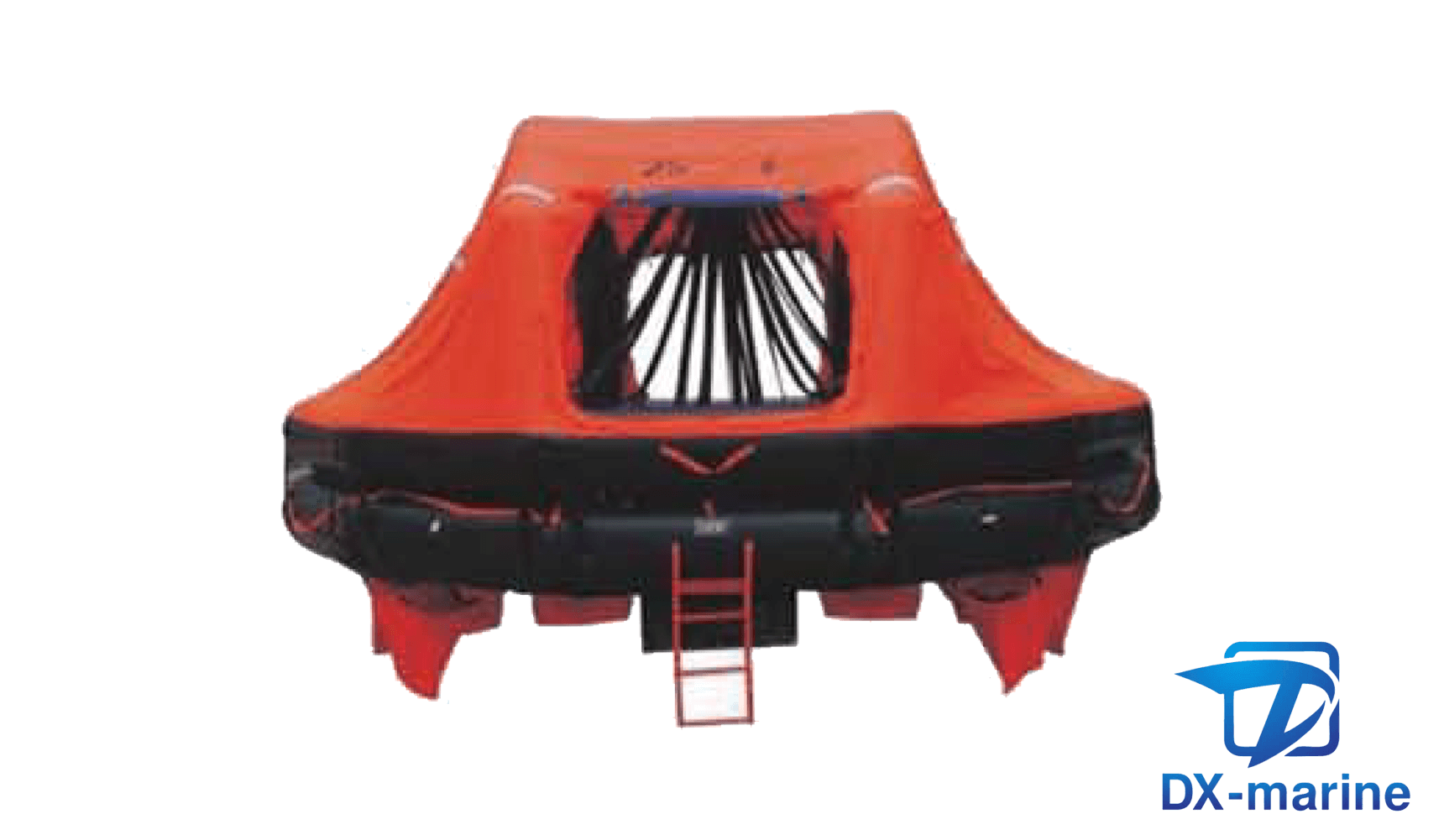

Davit-launched Inflatable Liferaft

A、Type: D-12\15\16\20\25

B、 Suitable for instlling in the vessels sailing on international voyages.

C、Max Storage Height: 18-50m

D、Equipment Outfit: SOLAS A/B Pack

E、Approved: CCS GL EC MED SOLAS

Type Shape Capacity Container dimension (mm) Weight (kg) Package size (Wooden box)(mm)
(Persons) SOLAS A PACK SOLAS B PACK SOLAS A PACK SOLAS B PACK
D-12 Rectangular octagon 12 1285* φ670 1285* φ670 ≤145   1330*720 *615 1330*720 *615
D-15 Rectangular octagon 15 1350* φ700 1285* φ670 ≤180 1400*755 *695 1330*720 *615
D-16 Rectangular octagon 16 1350* φ700 1285* φ670 ≤185 1400*755 *695 1330*720 *615
D-20 Rectangular dodecagon 20 1470* φ750 1350* φ700 ≤220 1515*805 *740 1400*755 *695
D-25 Rectangular dodecagon 25 1680* φ770 1470* φ750 ≤230 1720*800 *750 1515*805 *740





D-12(MED)         D-12(CCS)



D-15(MED)         D-15(CCS)





D-16(MED)         D-16(CCS)





D-20(MED)         D-20(CCS)





D-25(MED)         D-25(CCS)
